An oxygen absorber is sold with a number on the label, and that number is widely misunderstood. A three-hundred-cc unit does not remove three hundred cubic centimetres of air, and it does not remove three hundred cubic centimetres of oxygen either. It is rated against a specific volume of air under specific conditions, and using the rating as if it were a direct capacity figure is the single most common reason a package still goes rancid after a sachet was fitted. This guide explains what the rating means, how to calculate the real oxygen load of a package, how headspace and barrier film change the answer, and how to select an oxygen absorber that actually holds a product through its shelf life.
What an Oxygen Absorber Removes and What It Cannot
An oxygen absorber works by oxidation. The active material, usually finely divided iron, reacts with oxygen to form iron oxide, and in doing so it pulls oxygen out of the enclosed atmosphere and locks it into a solid. The reaction is essentially irreversible, which is why the protection it provides is fundamentally different from the temporary protection given by a gas flush.
The practical consequences follow directly from that chemistry. An oxygen absorber removes oxygen, not moisture, not carbon dioxide and not odour. Where a product is sensitive to water as well as to oxygen, a desiccant has to be added alongside it, and the two must be specified separately because they consume capacity for different reasons. An oxygen absorber also needs something to react with, which means it cannot be stored in an open container; a sachet left on a bench in air will be partly consumed before it ever reaches a package.
The speed of the reaction depends on temperature, on the availability of moisture and on the permeability of the pack. Iron oxidation is much faster in a warm, humid environment, which is convenient for a food jar in a kitchen and inconvenient for a dry, cold warehouse. This temperature sensitivity is one of the reasons a rating measured in a laboratory does not translate directly to a production line.
Reading the CC Rating Correctly
The number printed on an oxygen absorber is normally the volume of air that the unit will deoxygenate, not the volume of oxygen it absorbs. Since air contains roughly twenty-one percent oxygen, the two figures differ by nearly a factor of five, and confusing them leads to undersized specification by exactly that ratio.
The rating is also quoted against an end point, typically a residual oxygen level of around one-tenth of one percent, and against an assumed starting condition of air. If the package is flushed with nitrogen before sealing, the absorber has far less work to do and a smaller unit will do. If the product itself contains dissolved or entrapped oxygen, that oxygen must be added to the load and the rating alone will not cover it.
A third qualification is the temperature and time profile used for the test. A rating measured at a comfortable ambient temperature will be met only in similar conditions. Where the package will spend its life in a hot climate, the reaction runs faster and the end point is reached sooner, but the ultimate capacity can be limited if the absorber dries out. Where the package will be cold, the reaction may not complete within the intended shelf life at all.
Calculating the Real Oxygen Load
Sizing an oxygen absorber is a short calculation once the pieces are identified.
First, establish the volume of air in the sealed package. That means the total internal volume of the container minus the volume occupied by the product and any inserts. For a rigid jar or can this is straightforward. For a flexible pouch, the internal volume is the volume the pouch takes when it is filled and sealed, and it is usually measured by water displacement on a rejected sample rather than estimated from the flat dimensions.
Second, multiply that air volume by twenty-one percent to get the oxygen volume in cubic centimetres. That figure is the load the oxygen absorber must remove from the headspace.
Third, add the oxygen held inside the product itself. Porous foods, powders and fibrous materials can carry a meaningful quantity of interstitial air, and any product that has been aerated during processing will release oxygen slowly after sealing.
Fourth, decide the target residual level. Many shelf-stable applications target below one percent, and sensitive products such as nuts, coffee and dried meat benefit from below one-tenth of one percent.
Fifth, select a unit whose rating exceeds the calculated load, and then apply a margin. A margin of thirty to one hundred percent is normal, because real packages leak, real sealing is imperfect, and real storage climates vary.
| Input | How to obtain it | Typical value |
|---|---|---|
| Internal package volume | Water displacement on a filled sample | Application specific |
| Product volume | Measured or from specification | Application specific |
| Headspace air volume | Internal volume minus product volume | Application specific |
| Oxygen fraction of air | Constant | About 21 percent |
| Headspace oxygen load | Headspace volume multiplied by 0.21 | Calculated |
| Product entrained oxygen | Estimated from product type and testing | Often 5 to 20 percent extra |
| Target residual oxygen | Set by product sensitivity | 0.1 to 1 percent |
| Rating margin | Covers leaks and seal variation | 30 to 100 percent |
Headspace, Barrier Film and Seal Quality
The best calculated oxygen absorber in the world will fail if the package allows air back in faster than the absorber can remove it.
Packaging materials differ enormously in oxygen transmission rate. A metallised polyester laminate transmits a small fraction of what a plain polyethylene film does, and an aluminium foil laminate is better still. Where the shelf life target is measured in years, a high barrier structure is not optional; the absorber simply buys time for as long as the barrier holds.
Where only a limited barrier is available, the oxygen absorber will remove the initial load and then watch the ambient oxygen diffuse back in. In that situation the grade of barrier film should be revisited before the absorber size is increased, because adding absorber is a recurring cost while a better laminate is a one-off change.
Seal integrity is the other half of the barrier. A leaking seal behaves like a hole in the barrier, and a single contaminated seal on a production line will produce a whole batch of failures that look like a desiccant problem but are not. Seal verification by vacuum decay or dye penetration is standard practice for oxygen sensitive products, and it should be performed on every production run.
Temperature, Humidity and Reaction Speed
Iron based chemistry needs a little moisture to react efficiently. In a very dry product such as powdered milk, the reaction can be slow enough that the target residual oxygen is not reached before the shelf life clock has already run a long way. Suppliers address this by adding a small amount of moisture carrier to the sachet so that the absorber can start work immediately.
Temperature has a strong effect on speed and a weaker effect on ultimate capacity. A warm package will reach a low residual oxygen level quickly and then hold it. A cold package may take weeks to reach the same point, and if the product is then moved into a warm humid environment, the remaining capacity is spent faster than expected.
There is also a physical constraint worth knowing. As the absorber consumes oxygen, the internal pressure of a sealed flexible package falls. That is why a correctly sized pouch visibly tightens and why a rigid container may need a small degree of headspace flexibility. The tightening is a useful visual confirmation that the absorber is working, and an unexpectedly soft package in a warehouse is a warning sign.
Mistakes That Waste an Oxygen Absorber
Treating the cc rating as oxygen capacity. It is air volume, not oxygen volume, and the factor of roughly five is where most undersizing originates.
Ignoring product entrained oxygen. Powders and porous foods carry air inside them that must be counted in the load.
Using a low barrier film and blaming the absorber. Verify the oxygen transmission rate before increasing the unit size.
Skipping seal inspection. A defective seal defeats the entire system and is invisible to the naked eye.
Leaving sachets exposed during packing. An absorber starts working the moment it meets air; keep the supply bag sealed until each unit is used.
Forgetting that moisture is a separate problem. An oxygen absorber does not stop caking, mould or texture change caused by water.
Selecting on price per sachet. The relevant comparison is cost per package protected over the required shelf life.
FAQ
Q1: What does the cc number on an oxygen absorber mean?
It is the volume of air that the unit will deoxygenate to a low residual level, not the volume of oxygen it removes and not its own physical size.
Q2: How do I convert package volume into an oxygen absorber requirement?
Measure the headspace air volume, multiply by about 0.21 to get the oxygen content, add oxygen carried inside the product, then choose a unit whose rating exceeds that total with a margin.
Q3: Can I use a bigger oxygen absorber than I need?
Yes, within reason. A larger unit simply reaches the target residual oxygen level faster and provides more margin against leaks, though it costs more and can over-tighten a flexible pack.
Q4: Does an oxygen absorber replace a desiccant?
No. It removes oxygen only. Products sensitive to both oxidation and moisture need an oxygen absorber and a desiccant specified independently.
Q5: Why did my package not tighten after adding an oxygen absorber?
Usually a leaking seal, a low barrier film, or a product mass so large that the headspace volume was underestimated. Check the seal first.
Q6: How long does an oxygen absorber keep working?
It works until its capacity is consumed, which depends on the headspace volume and on how much oxygen diffuses through the packaging during storage.
Q7: Are oxygen absorbers safe to use with food?
Food grade sachets are designed for it and must never be opened or eaten. They should be handled and packed in a controlled area and recorded in the product's safety documentation.
Conclusion
An oxygen absorber is a precisely rated device, and it only performs when the rating is matched to a correctly calculated load. Measure the headspace, convert volume to oxygen, add what the product carries internally, choose a barrier film that will hold the result, and verify the seal on every run. Do those five things and the sachet on the label finally means what the buyer assumed it meant.

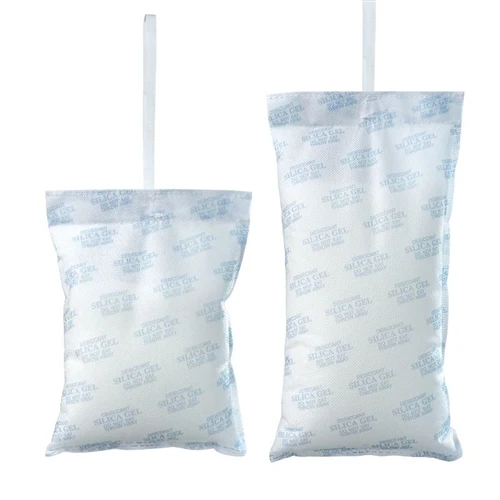

Dongguan Dingxing Industry Co., Ltd. supplies oxygen absorbers in food grade sachet formats across a wide range of cc ratings, alongside silica gel, clay and calcium chloride desiccants, container desiccant poles and blankets, and ethylene absorbers. Send us your package volume, product type and target shelf life and our team will calculate the oxygen load and recommend a size.
